Our Products

Running Gears

E-Z Trail wagons flex their muscles over terraces and through waterways! There is no terrain too rugged for the triple torsion telescopic reach that stretches from 7' to 15' by fractional increments.

Here's why E-Z Trail wagons "won't wag": The kingpin with tapered roller bearings simply keeps the steering as good as new long after others are worn & wagging! Dual Stops: Steering frame strikes both stops simultaneously "before and behind". Exclusive 100% greater over-steer protection.

Call E-Z Trail today!


Models We Carry

Model 680

Description

Specifications
Capacity 6 Ton
Tread Width 80"
Wheel Base 91-148"
Axle Height 21.5"
Axle Rectangle 3 x 6
Spindles 1 5/8"
Tongue Lift/Spring YES
Torsion Reach NO
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 6 bolt
Standard Tires 9.5L-15
Stake Width 38-42"
Weight 630
Model 872W

Description

Specifications
Capacity 8 Ton
Tread Width 72"
Wheel Base 85-182"
Axle Height 25"
Axle Rectangle 4 x 8
Spindles 1 3/4"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 6 bolt
Standard Tires 11L-15
Stake Width 38" or 42"
Weight 895
Model 890W

Description

Specifications
Capacity 8 Ton
Tread Width 90"
Wheel Base 85-182"
Axle Height 25"
Axle Rectangle 4 x 8
Spindles 1 3/4"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 6 bolt
Standard Tires 11L-15
Stake Width 38", 42", or 60"
Weight 895
Model 1074

Description

Specifications
Capacity 10 Ton
Tread Width 74"
Wheel Base 85-182"
Axle Height 26"
Axle Rectangle 4 x 8
Spindles 2"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 6 bolt
Standard Tires 12.5L-15
Stake Width 38-42"
Weight 980
Model 1274

Description

Specifications
Capacity 12 Ton
Tread Width 74"
Wheel Base 85-182"
Axle Height 26"
Axle Rectangle 4 x 8
Spindles 2"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 6 bolt
Standard Tires 12.5-15
Stake Width 38-42"
Weight 1280
Model 1384B

Description

Specifications
Capacity 13 Ton
Tread Width 84"
Wheel Base 85-182"
Axle Height 29"
Axle Rectangle 4 x 8
Spindles 2 1/4"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 8 bolt
Standard Tires 14L-16.1
Stake Width 38-42"
Weight 1170

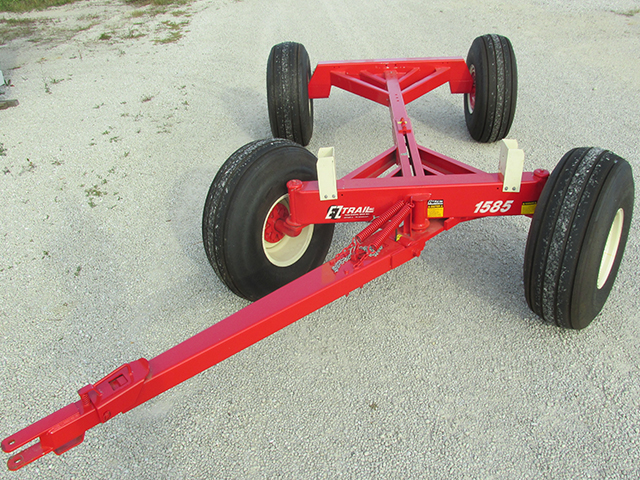

Model 1585

Description

Specifications
Capacity 15 Ton
Tread Width 85"
Wheel Base 85-182"
Axle Height 30"
Axle Rectangle 6 x 8
Spindles 2 3/4"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 8 bolt
Standard Tires 16.5-16.1
Stake Width 42"
Weight 1800
Model 15-120

Description

Specifications
Capacity 15 Ton
Tread Width 120"
Wheel Base 85-182"
Axle Height 30"
Axle Rectangle 6 x 8
Spindles 2 3/4"
Tongue Lift/Spring YES
Torsion Reach YES
Ball Joints YES
King pin w/ Tapered Roller Bearings Standard
Hubs 8 bolt
Standard Tires 16.5-16.1
Stake Width --
Weight --
