Our Products

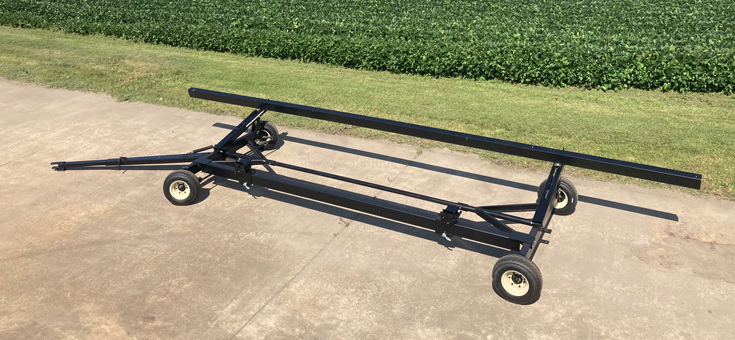

Head Hauler
The long upper rail is easily adjusted with ONE HAND using our Patented E-Z Handcranks, now standard on all models.
"Lifetime" accurate trailing is assured by E-Z Trail's original steering centered around sealed tapered roller bearings, truck type ball joints and dual stops with 100% greater oversteer protection. All steering parts are weather protected for lifetime outdoor use.

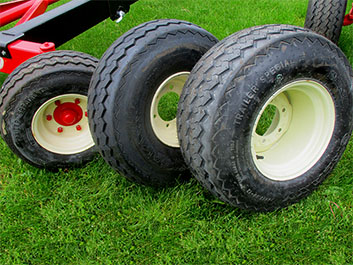

Standard tires for 21'-31':
Low profile 20.5x8-10 E Range 10 ply
Optional: 9.00-10 flotation tire
Standard tires for 37'& 42':
9.00-10 flotation (10 ply rating)
Optional: 26x12-12 F Range
Patented two-way slider brackets can be easily adjusted to accommodate any brand of grain or corn head. Brackets are designed to fit round or square frames, channels, & gussets.
Optional Lighting Kit: A necessity for use before sunrise and after sunset.
Optional Ratchet Tie Down: 10,000# test nylon strap hooks into slots on bottom rail and secures heads without a scratch. Storage tray slides into top rail.
Sizes We Carry
E-Z Trail Head Haulers are available in 5 sizes: 21', 26', 31', 37' & 42', as well as a model for Draper heads. They are designed to fit all brands and models of combine grain and corn heads. Standard features like extendable "E-Z Hitch" tongue with spring lift assist, lifetime accurate trailing, and wrench-free quick adjusting of the upper rail & rests at no extra cost...help you move ahead at a price that won't set you back!
** Available in RED or GREEN.

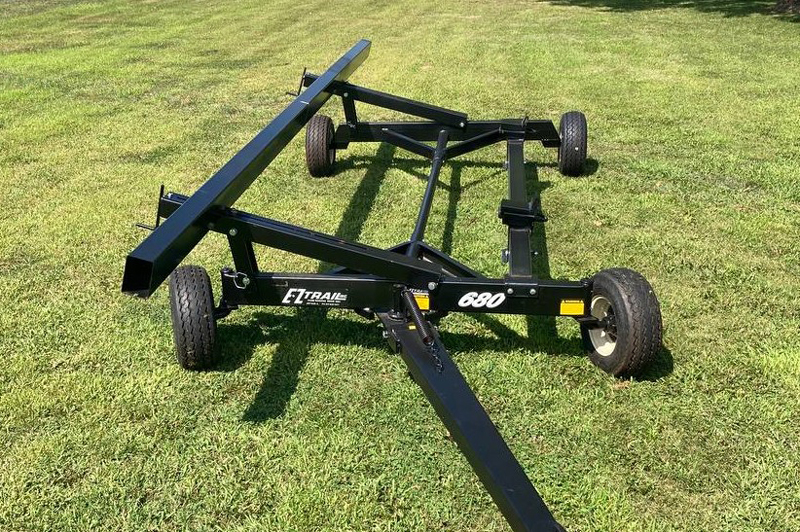

21'
Description
- 21' Head Hauler on 680 (6-ton) running gear
- 12'4" wheel base
- Low Profile 20.5 x 8-10 tires
- E-Z Handcranks
- Optional: 8-ton gear, 9.00-10 tires, ratchet strap, light kit

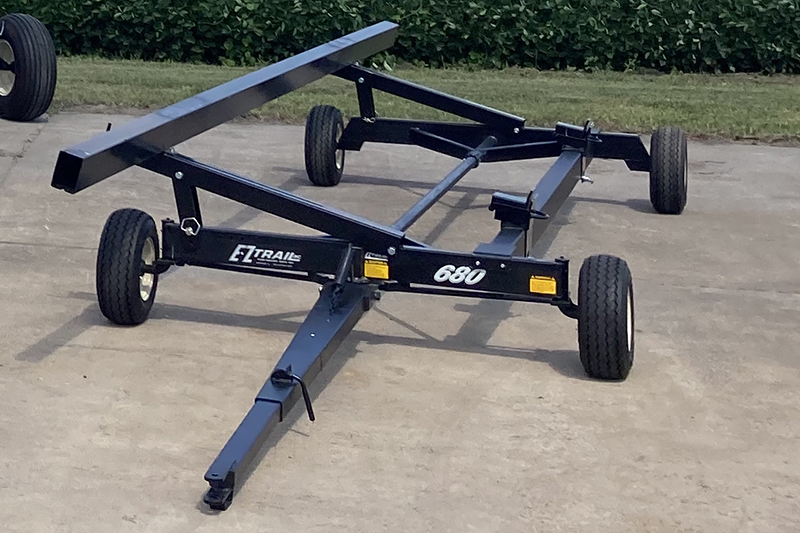

26'
Description
- 26' Head Hauler on 680 (6-ton) running gear
- 15'10" wheel base
- Low Profile 20.5 x 8-10 tires
- E-Z Handcranks
- Optional: 8-ton gear, 9.00-10 tires, ratchet strap, light kit
31'
Description
- 31' Head Hauler on 680 (6-ton) running gear
- 15'10" wheel base
- Low Profile 20.5 x 8-10 tires
- E-Z Handcranks
- Optional: 8-ton gear, 9.00-10 tires, ratchet strap, light kit
37'
Description
- 37' Head Hauler on 880 (8-ton) running gear
- 23' wheel base
- 9.00-10 tires
- E-Z Handcranks
- Optional: 26 x 12-12 tires, ratchet strap, light kit
42'
Description
- 42' Head Hauler on 880 (8-ton) running gear
- 23' wheel base
- 9.00-10 tires
- E-Z Handcranks
- Optional: 26 x 12-12 tires, ratchet strap, light kit
Draper
Description
- Draper Head Hauler on 880 (8-ton) running gear
- For 30' – 40' MacDon/Case IH Flex Drapers
- 9.00-10 tires
- E-Z Handcranks
- Optional: 26 x 12-12 tires, ratchet strap, light kit
