| E-Z Trail Running Gears
E-Z Trail wagons flex their muscles over terraces and through waterways!
There is no terrain too rugged for the triple torsion telescopic reach that stretches from 7' to 15' by fractional
increments.
Here's why E-Z Trail
wagons "won't wag": The kingpin with tapered roller bearings simply keeps the steering as good as new
long after others are worn & wagging! Dual Stops: Steering frame strikes both stops simultaneously
"before and behind". Exclusive 100% greater over-steer protection.
Call E-Z Trail
today!
Specifications:
| MODEL |
246/260 |
680
|

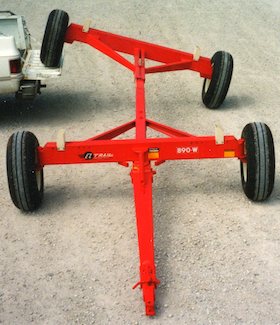

872W/890 |
1074 |
1274/tan |
1384B |
1585 |
| Capacity |
2
Ton |
6
Ton |
8
Ton |
10
Ton |
12
Ton |
13
Ton |
15
Ton |
| Tread Width |
46"/60" |
80"
|
72"/90" |
74" |
74" |
84" |
85" |
| Wheel Base |
55-86" |
91-148" |
85-182" |
85-182" |
85-182" |
85-182" |
85-182" |
| Axle Height |
14" |
21.5" |
25" |
26" |
26" |
29" |
30"
|
| Axle Rectangle |
2 x 3 |
3 x 6 |
4 x 8 |
4 x 8 |
4 x 8 |
4 x 8 |
6 x 8 |
| Spindles |
1 1/4" |
1 5/8" |
1 3/4" |
2" |
2" |
2 1/4" |
2 3/4" |
| Tongue Lift /Spring |
NO |
YES |
YES |
YES |
YES |
YES |
YES |
| Torsion Reach |
NO |
NO |
YES |
YES |
YES |
YES |
YES |
| Ball Joints |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
| King pin with
tapered roller bearings |
Stnd. |
Stnd. |
Stnd. |
Stnd. |
Stnd. |
Stnd. |
Stnd. |
| Hubs |
4 bolt |
6 bolt |
6 bolt |
6 bolt |
6 bolt |
8 bolt |
8 bolt |
| Standard Tires |
570-8 |
9.5L-15 |
11L-15 |
12.5L-15 |
12.5-15 |
14L-16.1 |
16.5-16.1 |
| Stake Width |
28/38 |
38-42 |
38-42/60 |
38-42 |
38-42 |
38-42 |
42 |
| Weight |
260 |
630 |
895 |
980 |
1280 |
1170 |
1800 |
 |
The
front spindles and tapered roller bearings of E-Z Trail's
famous steering are now weather shielded to assure low maintenance,
lifetime accurate trailing. |
|
